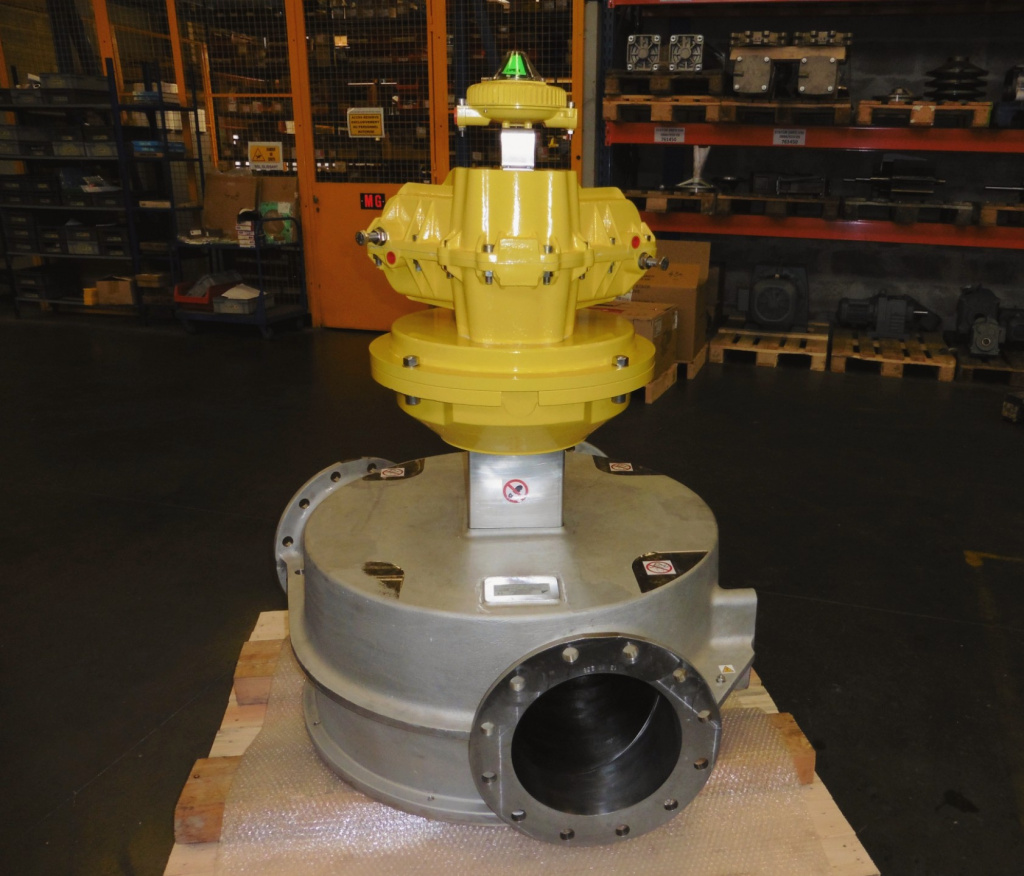

V2D – 2 direction valves

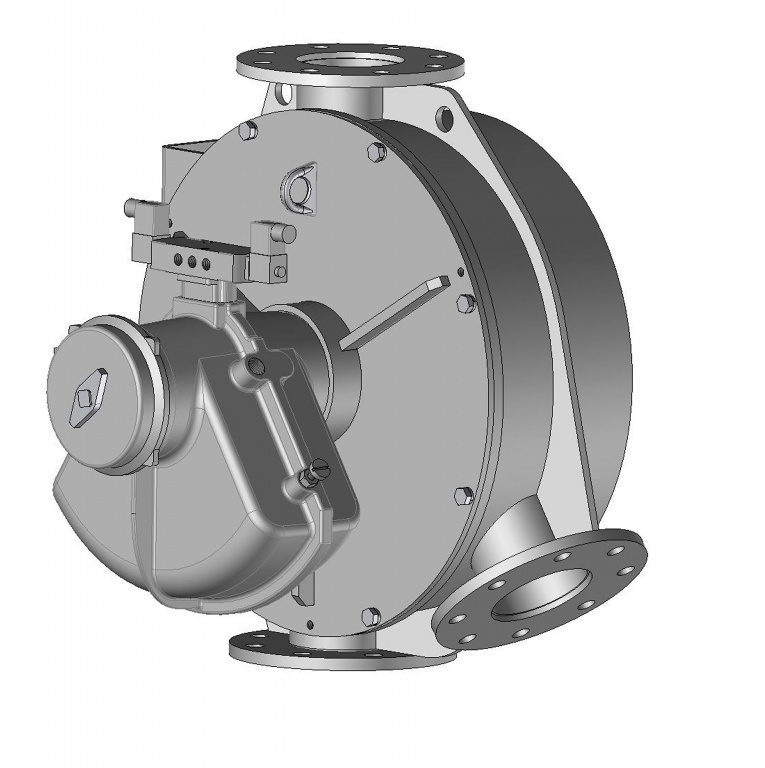

The 2-direction valve is made of a casing and a rotative monotube bushel able to select one of the two pipes of your installation. The twintube passage prevents retention zones and all the crossed contamination sources between the different products.
Every surface in contact with the product is in 316L stainless steel.
The V2D uses connection spigots that we can realize with all common tubes' diameters (DN65 to 350 and other on request)
The holding pressure can go up to 3 bar and admissible products temperature can go from -20°C up to 110°C.
Depending on the transported product characteristic, the V2D valve will suit many lines of business such as chemical and pharmaceutical industry, petfood, cement, sawmil and wood indutry, biomass, minerals, steelworks, treatment of NHIW…
Contact Us Data Sheet
